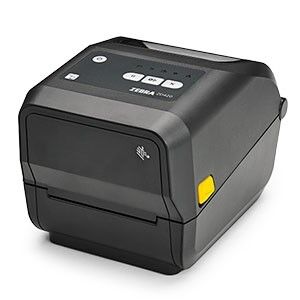

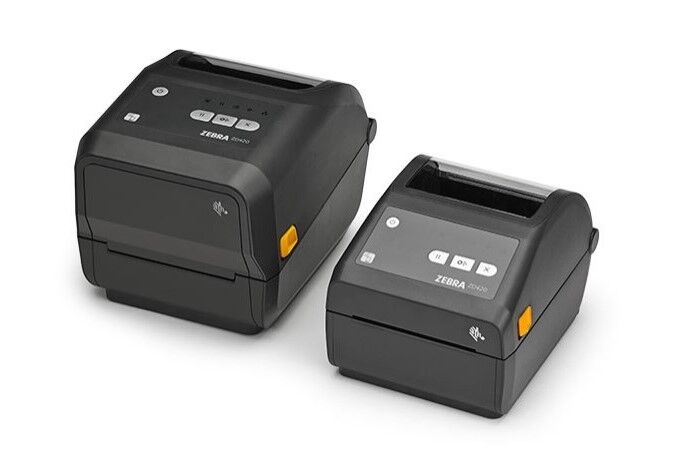

Zebra ZD420 Thermal Transfer Desktop Label Printer
Item Code: ZD420t
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$895.00 ex GST
Description
Zebra’s ZD420 printers deliver features and functionality that take deployment and management simplicity, ease-of-use, application flexibility and total cost of ownership (TCO) to a new level in this printer class. As the next generation in Zebra’s advanced desktop line, the ZD420 replaces Zebra’s popular GK420 Series.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Industry Use
Industry Use
- Retail
- Manufacturing
- Government Sector
- Logistics and Distribution
Features
Features
| Basic Information | |
| Brand Name: | Zebra |
| Manufacturer Part Number: | ZD420t |
| Product Name: | Zebra ZD420 Thermal Transfer Desktop Label Printer |
| Product Type: | Desktop Label Printer |
| Standard Features | |
| Resolution: | 203 dpi/8 dots per mm |
| Interface: | USB |
| Memory: | 512 MB Flash; 256 MB SDRAM for factory installed network connectivity options |
| Maximum Print Width: | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed: | 6 in./152 mm per second (203 dpi) |
| Media Sensors: | Full width, moveable reflective/black mark sensor; multi-position transmissive / gap sensor |
| Media and Ribbon Characteristics | |
| Maximum Label Length: | 39.0 in./991 mm |
| Media Width: | 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size: | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness: | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. |
| Media Types: | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter: | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length: | 984 ft. (300 m); 244 ft. (74 m) |
| Ribbon Ratio: | • 1:4 media to ribbon (300 m) • 1:1 media to ribbon (74 m) |
| Ribbon Width: | 1.33 in./33.8 mm ― 4.3 in./109.2 mm |
| Ribbon Core I.D: | • 300-meter ribbon 1 in./25.4 mm • 74 meter ribbon 0.5 in./12.7 mm |
| Operating Characteristics | |
| Operating Temperature: | 40° to 105° F/4.4° to 41° C |
| Storage Temperature: | -40° to 140° F/-40° to 60° C |
| Operating Humidity: | 10% to 90% non-condensing |
| Storage Humidity: | 5% to 95% non-condensing |
| Electrical: | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
| Physical Characteristics | |
| Colour: | Black |
| Length: | 10.5 in./267 mm |
| Width: | 8.0 in./202 mm |
| Height: | 7.5 in./ 192 mm |
| Weight (Body): | 5.3 lb/2.4 kg |
Included Items
Included Items
| Package Contents: |
|
|
|
|
|
|
