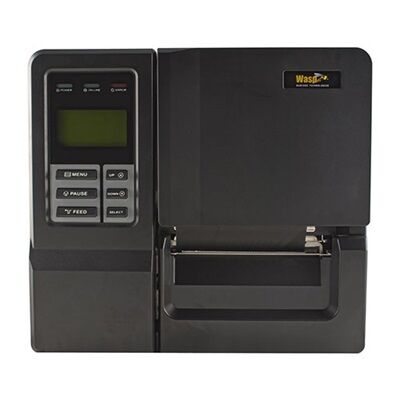

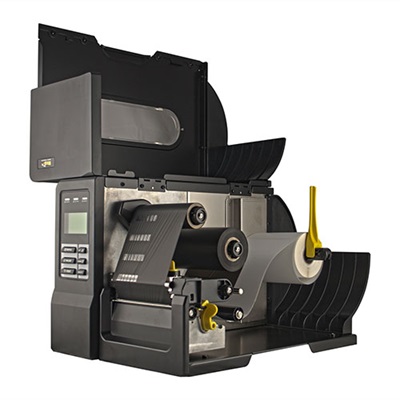

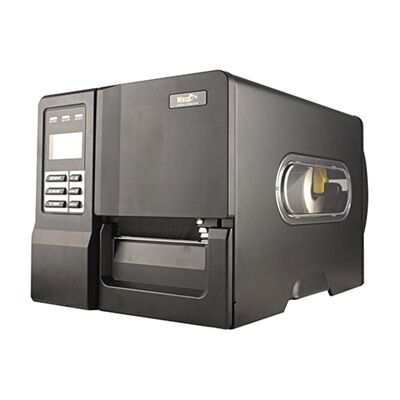

Wasp WPL406 Industrial Barcode Printer
Item Code: W-633808404062
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$2,100.00 ex GST
Description
Warranty: 2 Years, 1 Year on Printhead
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633808404062 |
| Product Name: | Wasp WPL406 Industrial Barcode Printer |
| Product Type: | Industrial Barcode Printer |
| Standard Features | |
| Printing method: | Direct thermal and thermal transfer |
| Resolution: | 203 dpi |
| Print speed: | Up to 6 inches per second |
| Maximum print width: | 4.09” |
| Maximum print length: | 90” |
| Memory: | 8 MB SDRAM, 4 MB Flash |
| Memory expansion: | Up to 4 GB |
| Sensors: | Gap transmissive, black mark, head open, and ribbon end |
| Cabinet: | All-metal cover with die-cast aluminum print mechanism with clear media viewing window |
| Control panel: | 6-button (menu, pause, feed, up, down, select) |
| Dimensions: | 17.09” L x 11.26” W x 10.20” H (258 mm L x 202 mm W x 173 mm H) |
| Net weight: | 24.25 lbs |
| Command set: | WPL, ZPL emulation, EPL emulation |
| Operational Characteristics | |
| Communication interfaces: | Internal Ethernet, USB 2.0, and serial |
| Operating temperature: | 41°F to 104°F (5°C to 40°C) |
| Storage temperature: | -40°F to 140°F (-40°C to 60°C) |
| Certifications: | FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TUV/Safety, CCC |
| Media Characteristics | |
| Media width: | 1” to 4.6” (25 mm to 118 mm) |
| Media diameter (max.): | 8” OD |
| Ribbon length (max.): | 450 meter |
| Fonts, Graphics and Symbologies | |
| 1D Barcode symbologies: | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, GS1 DataBar, Logmars, Code11 |
| 2D Barcode Symbologies | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Resident fonts: | 8 alpha-numeric bitmap fonts, 1 Monotype Image® CG Triumvirate Bold Condensed scalable font |
| Font rotation: | 0, 90, 180, 270 degrees |
Industry Use
Industry Use
- Manufacturing
- Healthcare
- Warehousing
- Logistics and Distribution
Included Items
Included Items
Package Contents:
- WPL406 Industrial Barcode Printer
- USB Cable
- Power cord
- 4.0” x 3.0″ sample labels
- 4.33″ sample ribbon
