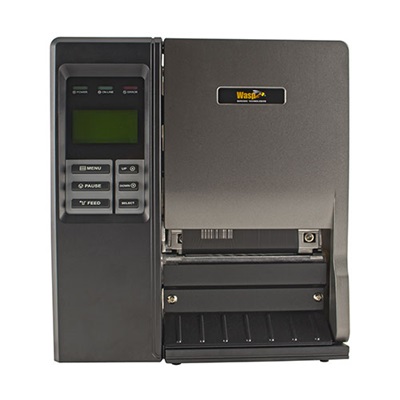

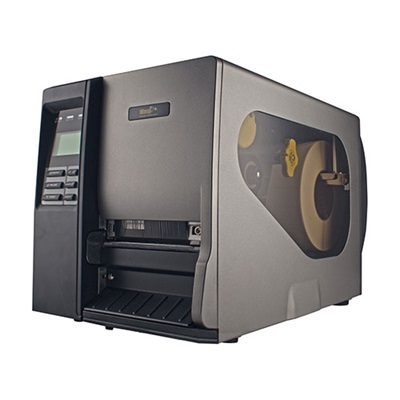

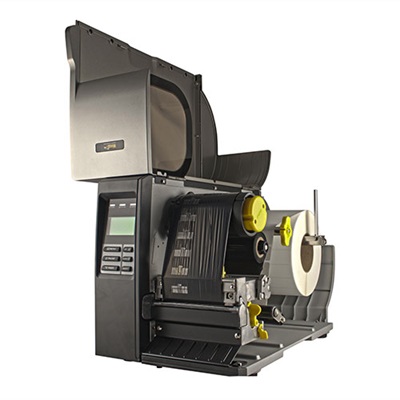

Wasp WPL612 Industrial Barcode Printer (203 dpi)
Item Code: W-633808404116
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$2,136.00 ex GST
Description
Warranty:
2 Years, 1 Year on Printhead
This product is no longer available, please click here to view similar products.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633808404062 |
| Product Name: | Wasp WPL406 Industrial Barcode Printer |
| Product Type: | Industrial Barcode Printer |
| Standard Features | |
| Printing method: | Direct thermal and thermal transfer |
| Resolution: | 203 dpi |
| Print speed: | Up to 12 inches per second |
| Maximum print width: | 4.09” |
| Maximum print length: | 160” |
| Memory: | 32 MB SDRAM, 8 MB Flash |
| Memory expansion: | Up to 4 GB |
| Sensors: | Gap transmissive, black mark reflective, head open, and ribbon end |
| Cabinet: | All-metal cover with the die-cast aluminium base, frame and print mechanism with clear media viewing window |
| Control panel: | 6-button (menu, pause, feed, up, down, select) |
| Dimensions: | 19.88” L x 10.63” W x 12.13” H (505 mm L x 270 mm W x 308 mm H) |
| Net weight: | 33 lbs |
| Command set: | WPL, ZPL emulation, EPL emulation |
| Operational Characteristics | |
| Communication interfaces: | Internal Ethernet, USB 2.0, serial, and parallel |
| Operating temperature: | 41°F to 104°F (5°C to 40°C) |
| Storage temperature: | -40°F to 140°F (-40°C to 60°C) |
| Certifications: | FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TUV/Safety, CCC, CB |
| Media Characteristics | |
| Media width: | 1” to 4.6” (25 mm to 118 mm) |
| Media diameter (max.): | 8.2” OD |
| Ribbon length (max.): | 600 meter |
| Fonts, Graphics and Symbologies | |
| 1D Barcode symbologies: | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, GS1 DataBar, Logmars, Code11 |
| 2D Barcode Symbologies | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Resident fonts | 8 alpha-numeric bitmap fonts, 1 Monotype Image® CG Triumvirate Bold Condensed scalable font |
| Font rotation | 0, 90, 180, 270 degrees |
Industry Use
Industry Use
- Manufacturing
- Healthcare
- Warehousing
- Hospitality
- Logistics and Distribution
Included Items
Included Items
Package Contents:
- WPL612 Industrial Barcode Printer
- USB Cable
- Power cord
- 2-Year warranty
