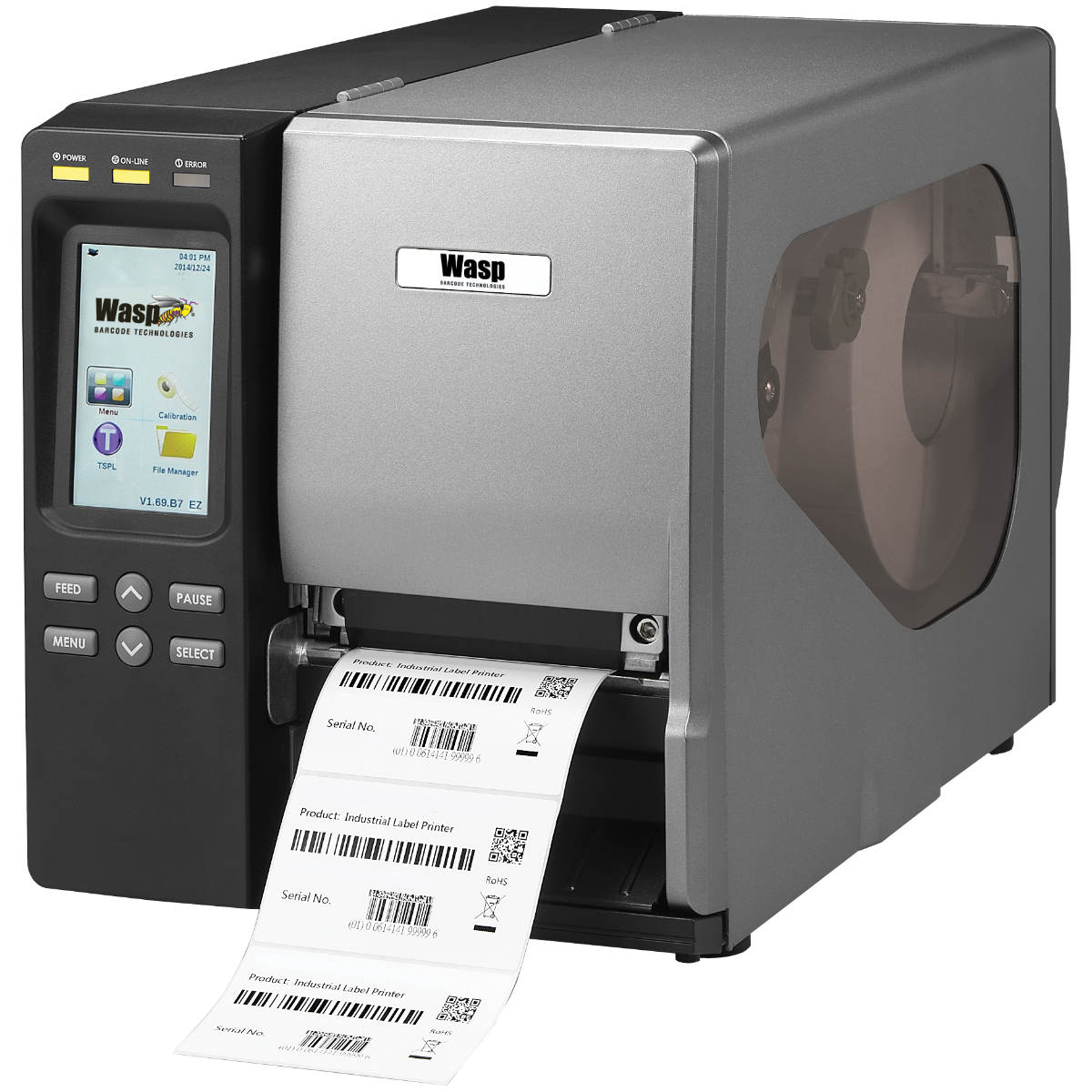

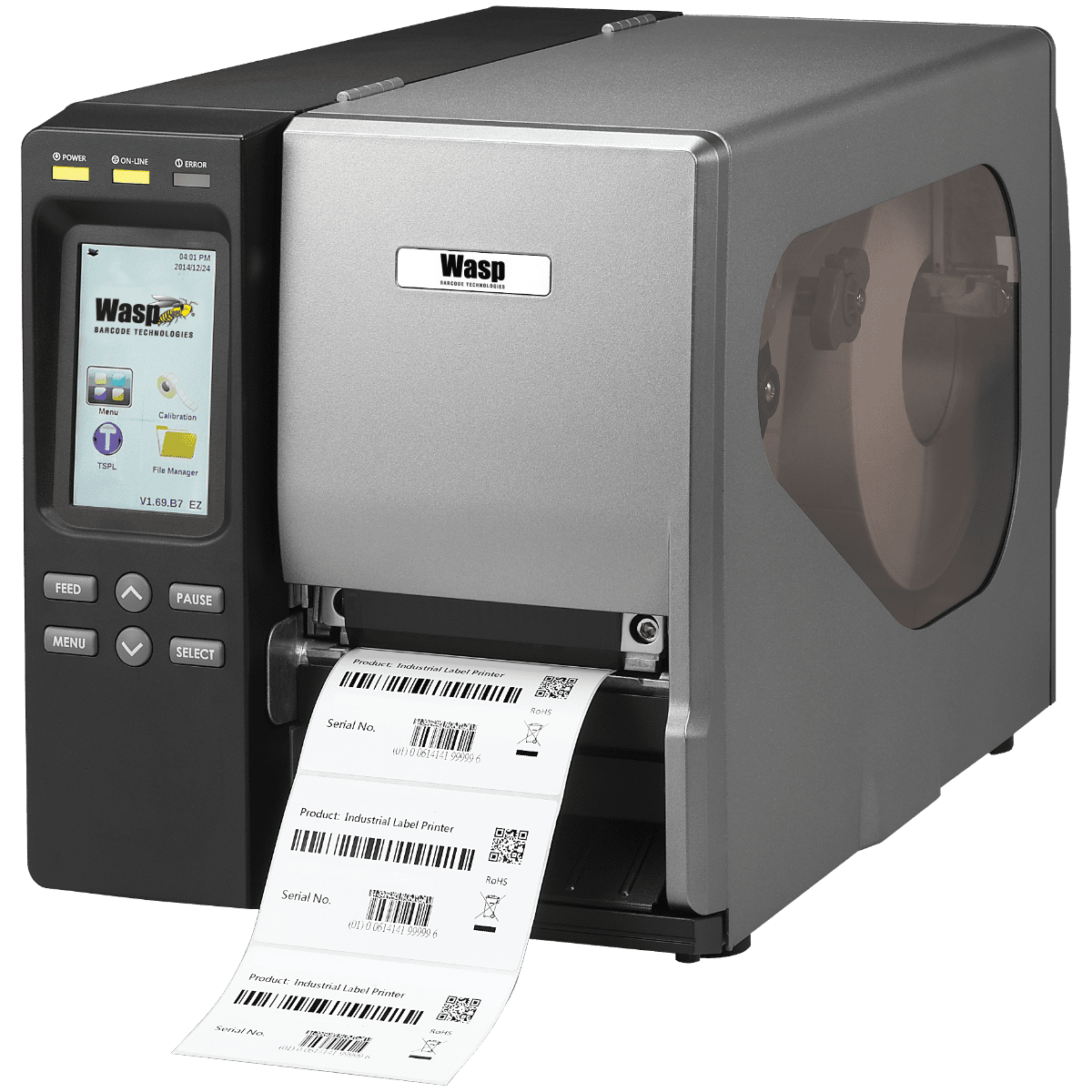

Wasp WPL614 Industrial Barcode printer

Item Code: W-633809003097

Be the first to Review this Product

Specifications (PDF): Download Datasheet

Need Support: Click Here

$3,421.00 ex GST

Description

Warranty: 2 Years

The WPL614 industrial barcode printer is both versatile and easy to use with features like direct thermal and thermal transfer printing, 6-button color LCD resistive touch screen for fast configuration and enhanced print quality, “Thermal Smart Control”, which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time, whether you are printing one label at a time or thousands of labels in a batch.

Cost Effective and Integrated Solutions

Ready to Use, right out of the box software

Implementation, Training and Support

Hundreds of Installs Australia wide

Features

Basic Information
Brand Name:	Wasp Barcode Technologies
Manufacturer Part Number:	W-633809003097
Product Name:	Wasp WPL614 Industrial Barcode printer
Product Type:	Desktop Barcode Printer

Standard Features
Printing method:	Thermal Transfer & Direct Thermal
Resolution:	203 dpi (8 dots / mm)
Maximum Print Speed:	14 IPS (356 mm per second)
Maximum print width:	4.09 in (104 mm)
Maximum print length:	1,000 in (25,400 mm)

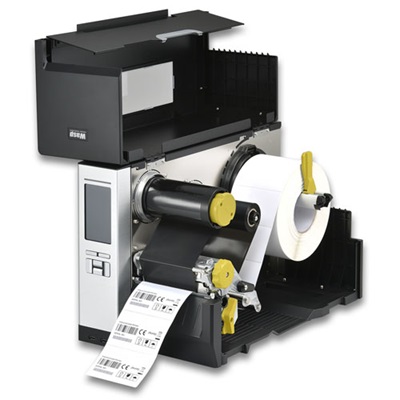

Enclosure:	Die-cast print mechanism and base with bi-fold metal cover with large clear media view window
Processor:	32-bit RISC CPU
Memory:	512 MB Flash memory
	256 MB SDRAM
	microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Power:	Internal switching power supply
	Input: AC 100-240V, 4-2A, 50-60Hz
	Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
Sensors:	Gap transmissive sensor (position adjustable)
	Black mark reflective sensor (position adjustable)
	Head open sensor
	Ribbon encoder sensor
	Ribbon end sensor
	Media near end sensor
LCD:	16 bits color, 480 x 272 pixel, with back light, Resistive Touch Screen
Operation switch, button, LED:	1 power switch, 6 operation buttons (2 function keys and navigation buttons) & 1 LED with 3 colors (red, green, amber)
Dimensions:	10.87 in (W) x 16.22 in (H) x 19.76 in (D) / 276 mm (W) x 412 mm (H) x 502 mm (D)
Net weight:	41.73 lbs. (18.93 kg)
Printer Language:	WPL (Compatible with EPL, ZPL, ZPL II)
Label Roll Capacity:	8 in OD (203.2 mm)
Internal Rewinder (Full Roll):	Standard

Operational Characteristics
Interface:	USB 2.0, RS-232, Internal Ethernet – 10/100 Mbps
Environment Condition:	Operation: 41 ~ 104°F, 25 ~ 85% non-condensing
	Storage: -40 ~ 140°F, 10 ~ 90% non-condensing
Certifications:	FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR®
Environmental Concern:	Comply with RoHS, WEEE

Media & Ribbon Characteristics
Media type:	Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Media width:	0.79 in ~ 4.5 in (20 mm ~ 114 mm)
Media thickness:	2.36 ~ 28 mil (0.06 mm ~ 0.28 mm)
Media core diameter:	1.5 in ~ 3 in (38.1 mm ~ 76.2 mm)
Label length:	0.20 in ~ 1,000 in (5 mm ~ 25,400 mm)
Ribbon:	1 in. core (ink coated outside or inside) / 600 m long, max. OD 90 mm
Ribbon Width:	1 in ~ 4.5 in (25.4 mm ~ 114.3 mm)

Fonts, Graphics and Symbologies
1D Barcode symbologies:	Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D Barcode Symbologies:	TLC39, CODABLOCK F mode, Maxicode, QR code, Aztec, PDF-417, Micro PDF 417, GS1 DataMatrix, GS1 DataBar (RSS barcode)
Internal fonts:	8 alpha-numeric bitmap fonts
	Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Font rotation:	0, 90, 180, 270 degree
