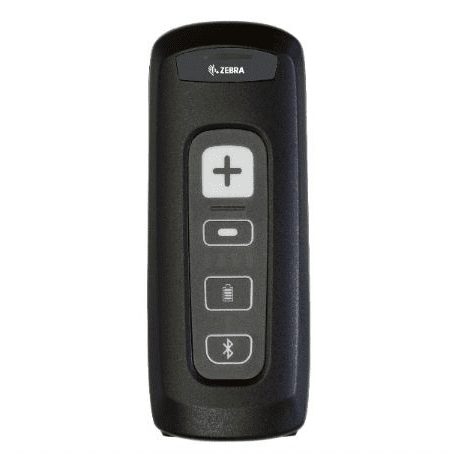

Zebra CS4070 2D Companion Scanner with Lanyard
Item Code: CS4070
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$445.00 ex GST
Description
Zebra CS4070 2D Companion Scanner, W/Lanyard is barcode scanner designed specifically for the health sector with superior scanning technology to capture virtually any barcode – 1D or 2D, electronic or printed, under any condition.
Quality, Efficiency, Service and Reliability
Customer Care is not a department, it is our attitude
We won’t keep you waiting when you need help
Wide range of innovative solutions and top brands
Features
Features
| Basic Information | |
| Brand Name: | Zebra |
| Manufacturer Part Number: | CS4070 |
| Product Name: | Zebra CS4070 Companion Scanner |
| Product Type: | Wireless Pocket Barcode Scanner |
| Technical Information | |
| Decode Capability | 1D and 2D symbologies |
| Interfaces Supported | USB (micro jack): Bluetooth |
| Real Time Clock | A date/time stamp can be recorded with each bar code scanned (batch mode operation only) |
| Batch Communication | USB 2.0 |
| Decode Range | |
| 4 mil Code 39: | 2.9 in. / 7.4 cm — 8.4 in. / 21.4 cm |
| 5 mil Code 128: | 2.4 in. / 6.1 cm — 7.8 in. / 19.8 cm |
| 5 mil 39: | 1.6 in. / 4.1 cm — 13.1 in. / 33.3 cm |
| 5 mil PDF417: | 2.7 in. / 6.9 cm — 8.0 in. / 20.3 cm |
| 10 mil Data Matrix: | 2.5 in. / 6.4 cm — 9.7 in. / 24.7 cm |
| 100% UPCA: | 1.4 in. / 3.6 cm* — 25.6 in. / 65.0 cm |
| 20.0 mil Code 39: | 1.6 in. / 4.1 cm* — 29.6 in. / 75.2 cm |
| *Minimum distance determined by symbol length and scan angle | |
| Physical Characteristics | |
| Dimensions | 4.39 in. L x 1.79 in. W x 1.02 in. H 11.15 cm L x 4.55 cm W x 2.6 cm H |
| Weight | With batteries: 3.28 oz./93.2 g |
| Scan Engine | SE4710 image engine |
| Memory | 512 MB Flash |
| Memory Capacity | Over 1 million bar codes (UPC with time date stamp) |
| LEDs | Scan LED (Green, Red, and Amber) and Bluetooth® LED (Blue) Four LED battery status indicator |
| Buttons | Scan, remove scan (batch mode only), enable Bluetooth (RF scanners only), battery status; scan button tested to a million depressions, all other buttons tested to 250,000 depressions |
| Operating Modes | |
| Batch | Scans recorded with optional time/date stamp |
| Open Bluetooth | Real-time wireless data transmission |
| Power Information | |
| Battery | 950 mAh Lithium-ion |
| Charge Time | 3 hours 40 minutes |
| Battery Life | Batch: 24 hours use or 8,500 scans (6 scans per minute on a full charge) Standby: 3 months Bluetooth 12 hours use or 4,250 scans (6 scans per minute on a full charge) |
| Environmental Characteristics | |
| Drop Specification | Multiple 5 ft./1.5 m drops to concrete |
| Tumble Specification | 250 cycles @ 1.64 ft./0.5 m (500 drops) |
| Sealing | IP42 |
| Operating Temperature | 32° to 104° F/0° to 40° C |
| Storage Temperature | -40° to 158° F/-40° to 70°C |
| Humidity | 10 to 95% noncondensing |
| Ambient Lighting Tolerance | Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux) Sunlight: 8,000 ft. candles (86,111 Lux) |
