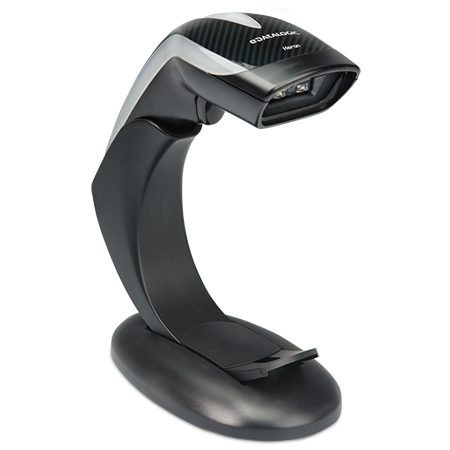

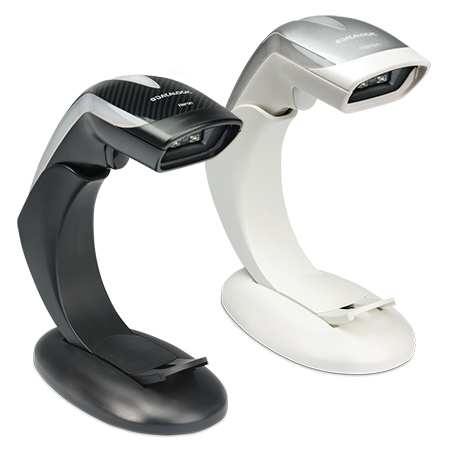

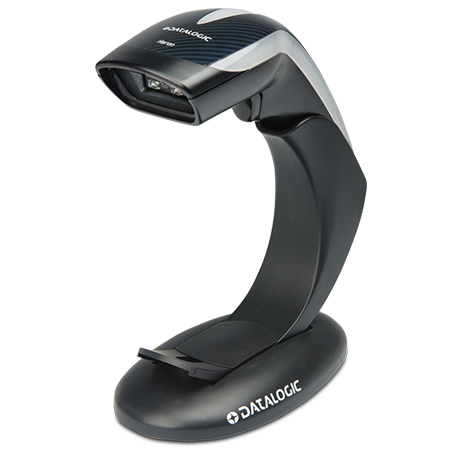

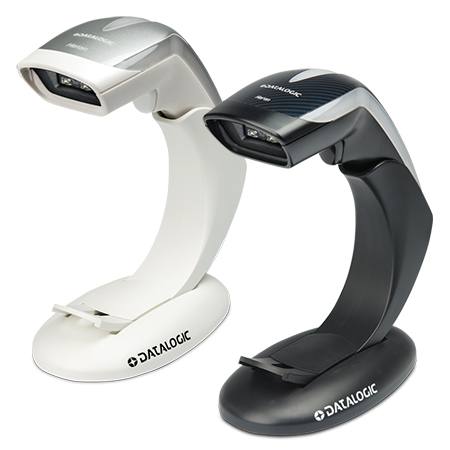

Datalogic Heron HD3430 2D USB Area-Image Scanner
Item Code: HD3430-BKK1B
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$599.00 ex GST
Description
Datalogic Heron HD3430 2D USB Area-Image Scanner gives unmatched 2d reading performance and image capture capability. The Scanner is extremely user-friendly as the highky visible 4-dot aimer defines a precise reading zone.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Datalogic |
| Manufacturer Part Number: | HD3430-BKK1B |
| Product Name: | Datalogic Heron HD3430 2D USB Area-Image Scanner |
| Product Type: | Handheld Barcode Scanner |
| Interfaces/Ports | |
| Host Interface: | USB |
| Technical Information | |
| Barcode Dimension: | 1D and 2D |
| 1D / Linear Codes: | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes |
| 2D Codes: | Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code |
| Postal Codes: | Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) |
| Stacked Codes: | EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites |
| Typical Depth of Field: | Minimum distance determined by symbol length and scan angle. |
| Printing resolution, contrast, and ambient light dependent. | |
| Code 39: 5 mils: 3.5 to 20.0 cm / 1.3 to 7.8 in | |
| EAN-13: 13 mils: 3.0 to 40.0 cm / 1.2 to 15.7 in | |
| Data Matrix: 15 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in | |
| Print Contrast Ratio (Minimum): | 15% |
| Reading Angle: | Pitch: +/- 65°; Roll (Tilt): Up to +/- 360°; Skew (Yaw): +/- 60° |
| Resolution: | 4 mils |
| Scan Pattern: | Single Line |
| Scanning Distance: | 584.20 mm |
| Miscellaneous | |
| Agency Approvals: | The product meets necessary safety and regulatory approvals for its intended use. |
| Environmental Compliance: | Complies to China RoHS; Complies to EU RoHS |
| Laser Classification: | Class 2 according to IEC 60825-1 |
| LED Classification: | Exempt group according to IEC 62471 |
| Particulate and Water Sealing: | IP40 |
| Drop Resistance: | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Physical Characteristics | |
| Colour: | Black |
| Dimensions: | 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in |
| Weight (Approximate): | 150 g |
Included Items
Included Items
| Heron HD3430 USB Kit includes: |
|
|
|
Industry Use
Industry Use
Retail
