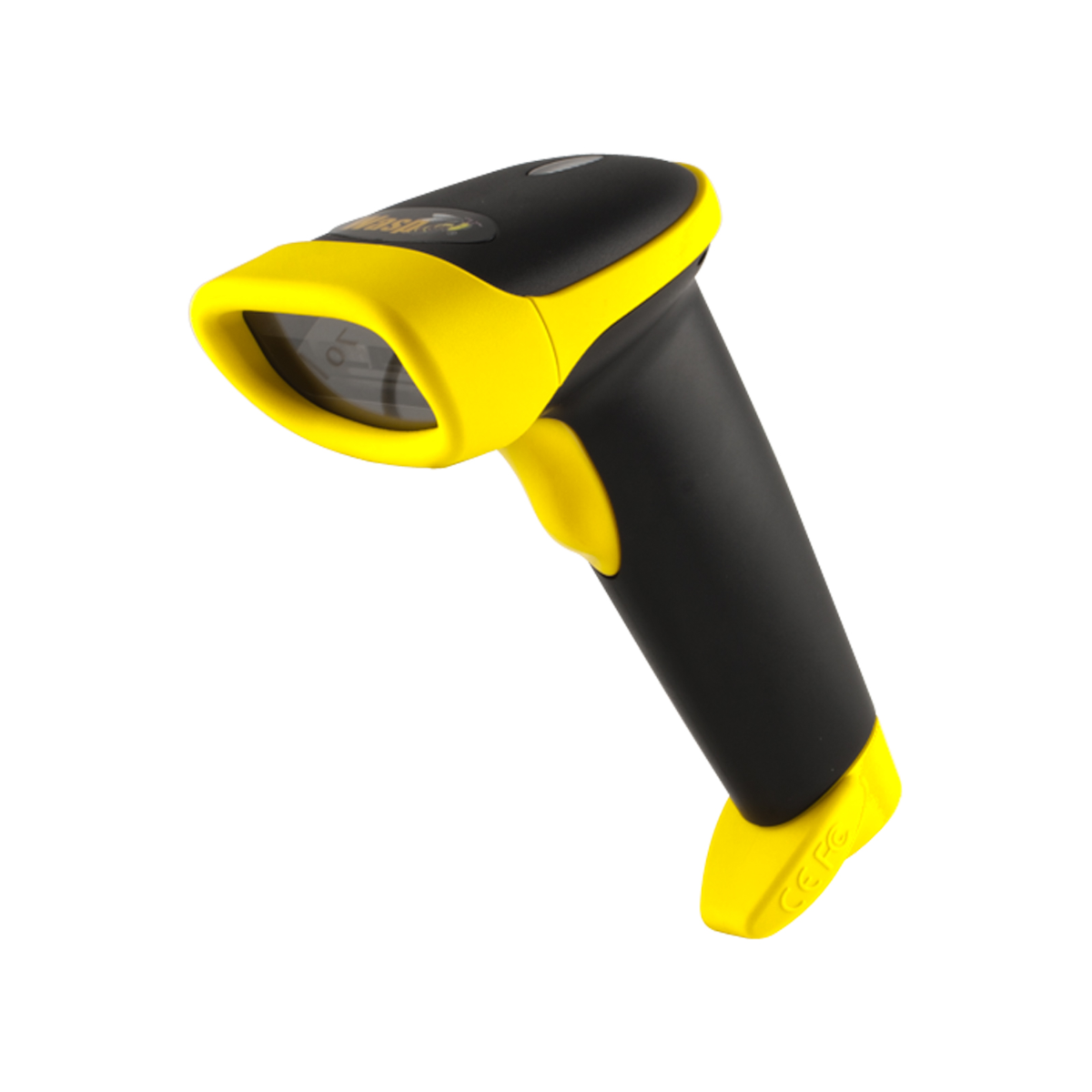

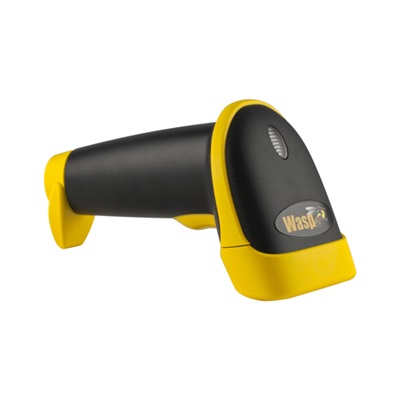

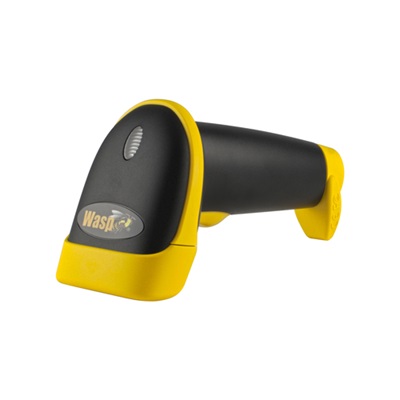

Wasp WLR8950 Bi-Color CCD Barcode Scanner with USB Cable
Item Code: W-633808121662
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$341.00 ex GST
Description
Wasp WLR8950 Bi-Color CCD Barcode Scanner is a cost effective, easy to use long range scanner which is ideal for retail point of sale. It can efficiently read 1D colored barcodes from as far as 12” using a dual LED light source.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
More Information
More Information
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633808121662 |
| Product Name: | Wasp WLR8950 Bi-Color CCD Barcode Scanner with USB Cable |
| Product Type: | Long Range Barcode Scanner |
| Optical Features | |
| Light source: | 630 nm visible red LED; 525 nm visible green LED |
| Print Contrast Rate: | 30% |
| Resolution: | 3 mil |
| Depth of field: | 80 to 100 mm @ 4 mil (Code 39); 80 to 125 mm @ 5 mil (Code 39); 25 to 300 mm @ 15.6 mil (EAN); 95 to 170 mm @ X:10 mil, Y:1mm (PDF 417) |
| Scan rate: | 230-450 scans/sec |
| Technical Information | |
| 1D (Linear) Symbologies Read: | UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code |
| Power Characteristics | |
| Operating Voltage: | 5 VDC ± 5% |
| Working Current Consumption: | <340 mA (single color mode); <370 mA (bi-color mode) |
| Idle Current Consumption: | <220 mA (PS2); <240 mA (USB) |
| Environmental Characteristics | |
| Operating temperature: | 32°F to 122°F (0°C to 50°C) |
| Storage temperature: | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity: | 20% to 85% (non-condensing) |
| Mechanical shock: | Withstands repeated 6 ft. (1.8 m) drops to concrete |
| Physical Characteristics | |
| Dimensions: | 6.3” H x 2.7” L x 3.5” W (16 cm H x 6.9 cm L x 8.9 cm W) |
| Net weight: | 4.8 oz (135 g) |
| Cable: | 6 ft. |
| Miscellaneous | |
| Safety: | Conforms FCC Class B and CE requirement |
Industry Use
Industry Use
- Retail
- Healthcare
- Government Sector
- Education
Included Items
Included Items
-
Package Contents: - WLR8950 Long Range CCD Barcode Scanner
- 6’ USB cable
- Scanner programming guide
